Gorka XL Swivel


Gorka XL Swivel

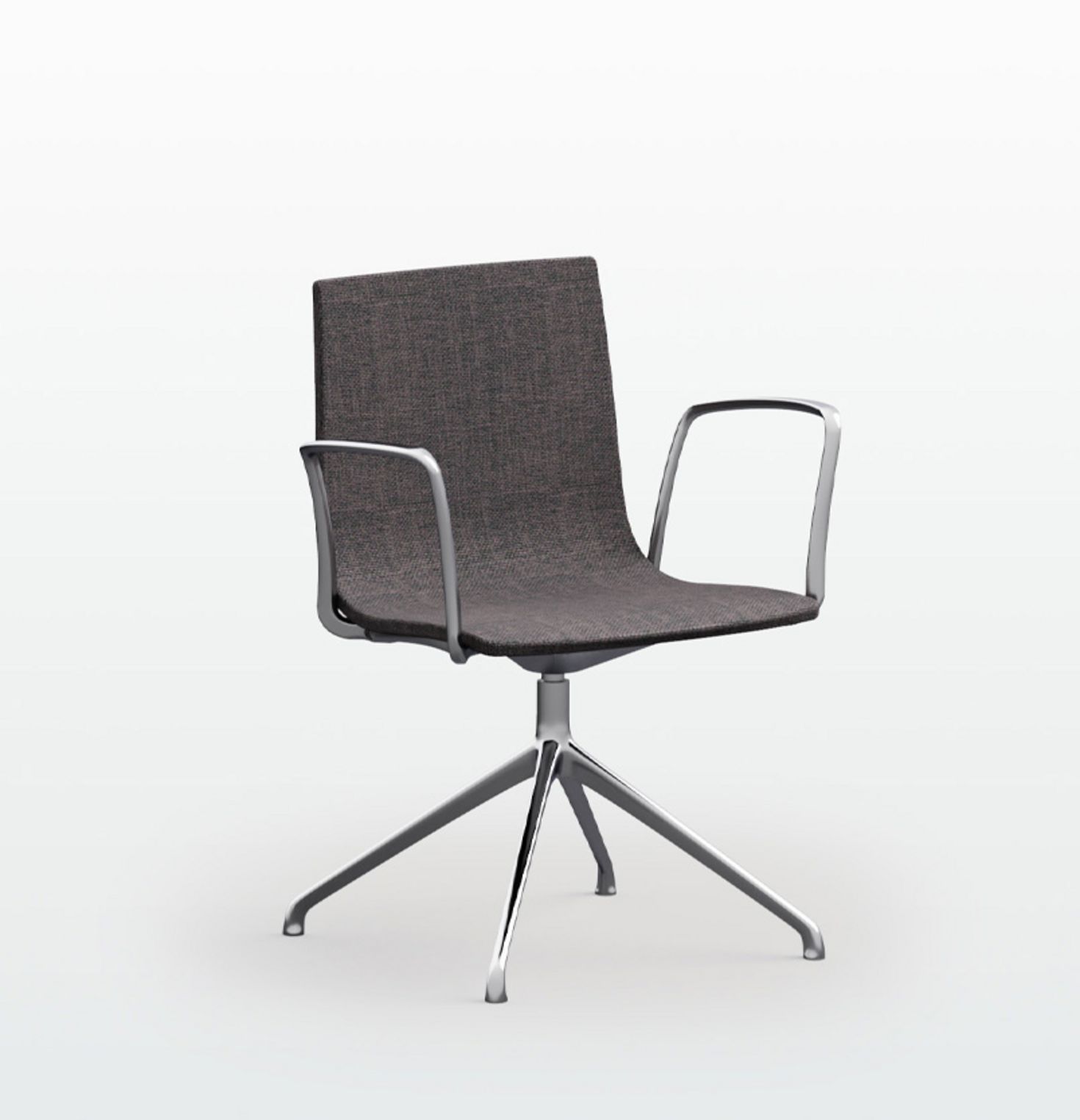

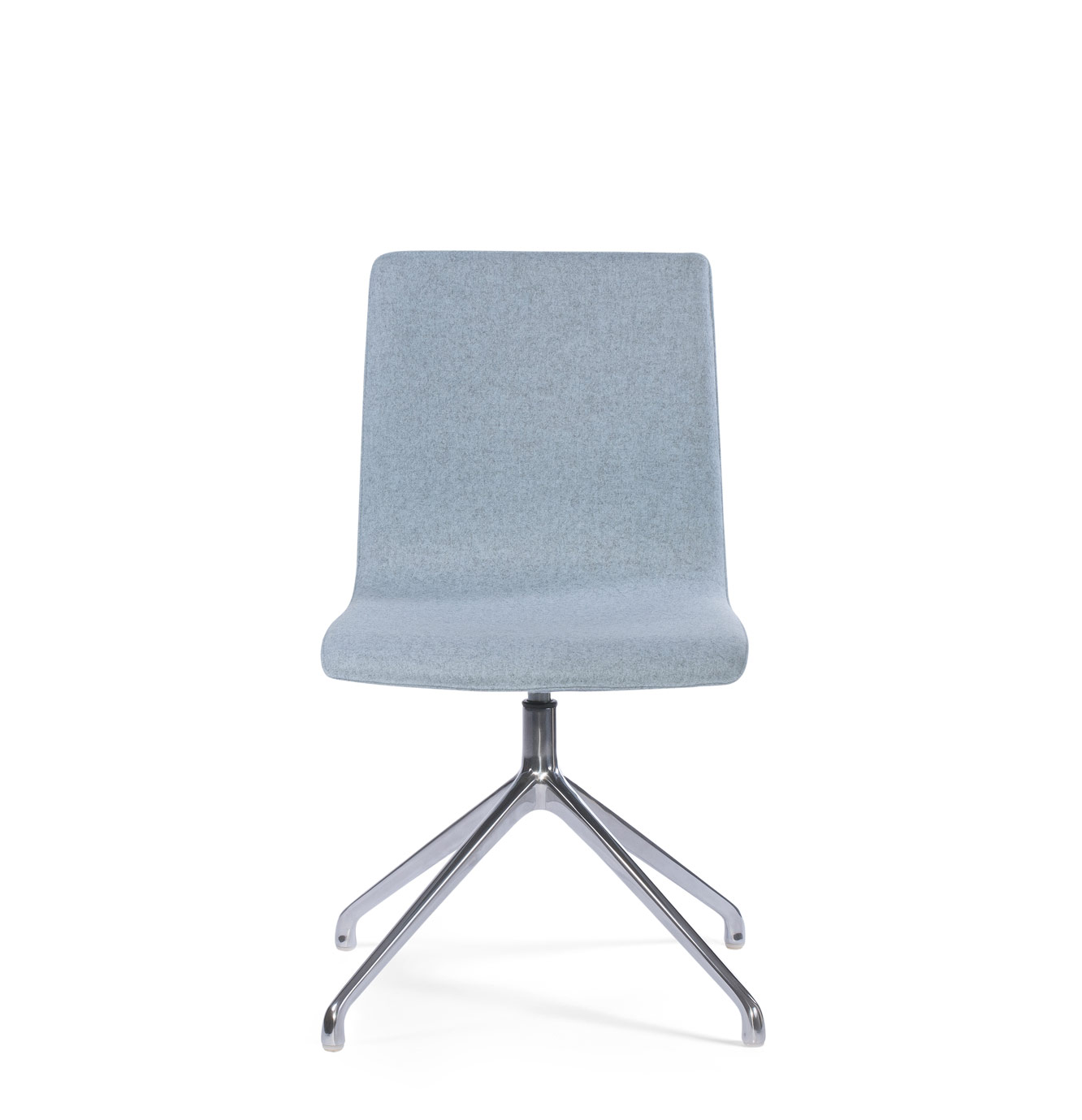

Fixed-height swivel chair in wood with and without arms with glides or castors.
Structure 4-star injected aluminium base, fixed height and swivelling.

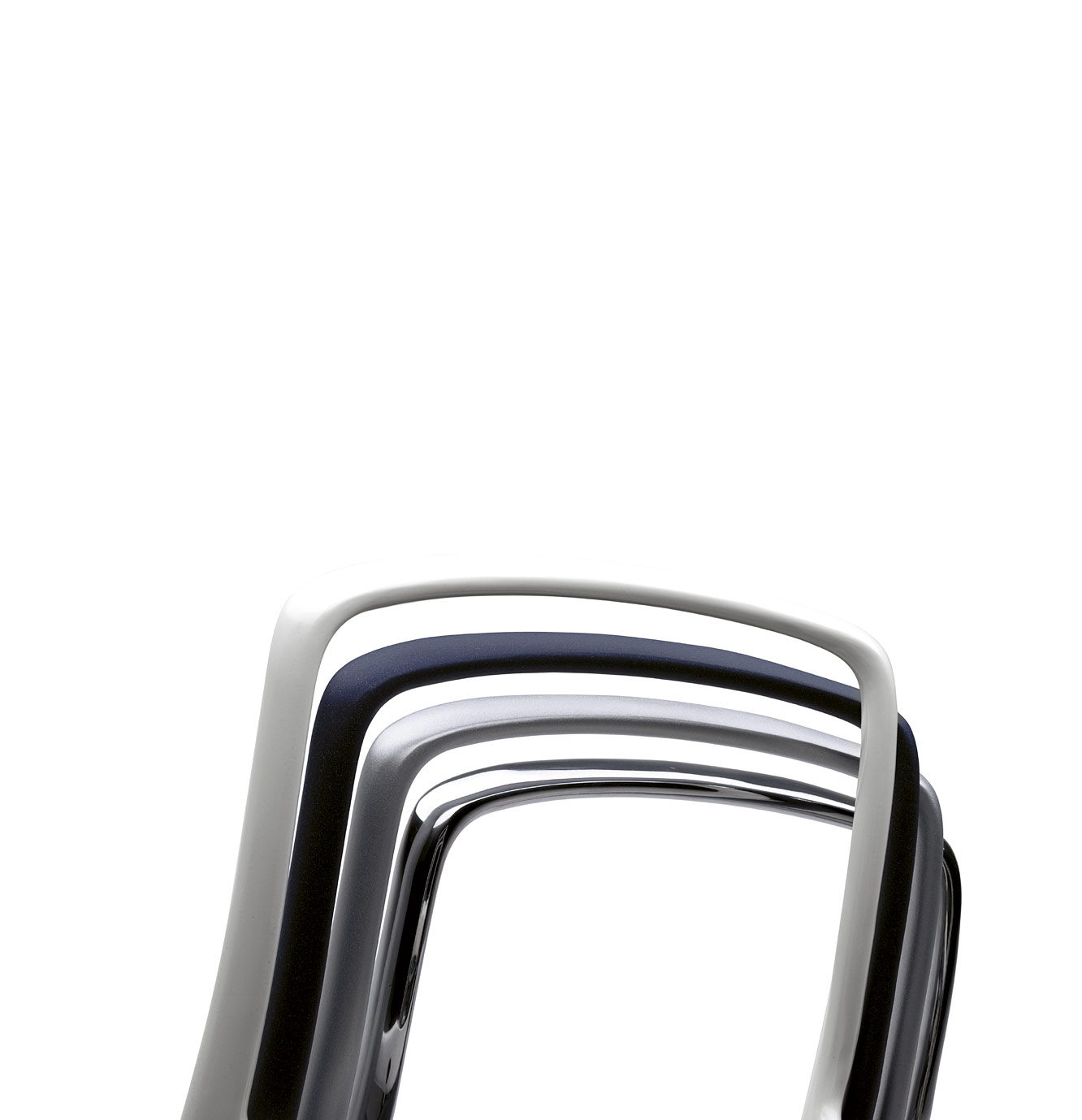

Arms high-pressure die-cast aluminium. Quality: UNE L-2630. Injection pressure = 1,000 MT.
Shell 9-layer beech wood curved in high frequency hot press and aluminium mould. Surface treatment with fine 100 grade steel wool. Final coat of two-component polyurethane and catalyst with UV and non-yellowing filter. Discontinuous thickness 10-11mm.
Foam cushion with 35 kg/m3 density and 10mm thickness; glued using eco-friendly waterborne adhesive.
Glides polypropylene with felt.
Metallic finishes epoxy/polyester paint with a thickness of 50-90 microns depending on the colour, ISO 2409 Gt 0 adhesion and ASTM 2794 impact 2.5 joules reverse & direct or polished.
Finishes stained with matt acrylic varnish with UV filter available in different options.
Upholstery see manufacturers' specifications.
Environmental Certificates
Recyclable up to 100 %.
Measures
Gorka XL Swivel
Specs
Product weight:
XL Swivel with arms
11,5 kg
XL Swivel without arms
12 kg
Packaging Information:
680x560x840 mm
Number of chairs per box:
1 Unit
Footage for upholstered versions (COM):
(for more than 1 unit contact factory)
0,92 ml / 18 feet
Accesories

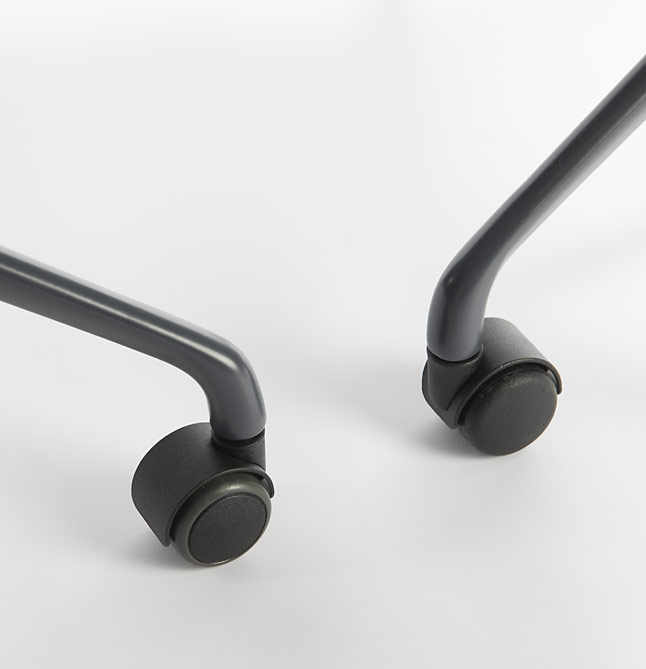

Castors / GK
Hard or soft castors.
Finishes
Shells / Varnished plywoods

Colour / M-613

Colour / M-653

Colour / M-638

Colour / M-637
Metal finishes / Powder coats (RAL: approximate references)

Colour / P-5001: RAL 5001 NAVY BLUE RAL 5001

Colour / P-5007: RAL 5007 Brilliant blue

Colour / P-283: PANTONE 283 Sky Blue

Colour / P-5018: RAL 5018 Turquoise blue

Colour / P-7010 : RAL 7010 Winter green textured

Colour / P-7024: RAL 7024 Graphite grey

Colour / P-247: RAL 9007 Silver

Colour / P-240: RAL 9006 Silver Textured

Colour / P-201: RAL 9010 White

Colour / P-257: RAL 9016 White textured

Colour / P-246: RAL 9017 Black

Colour / P-208: RAL 9017 Black textured

Colour / P-7003 : *RAL 7003 Moss grey

Colour / P-6028: RAL 6028 Pine green

Colour / P-252: RAL 6021 Pale Green

Colour / P-952: Pantone 952 Spicy mustard

Colour / P-254: RAL 7042 Traffic grey

Colour / P-3040 MINT

Colour / P-250: RAL 1015 Mustard

Colour / P-1017 : *RAL 1017 Apricot - Ochre

Colour / P-249 : RAL 1019 Grey Beige

Colour / P-1002 IVORY

Colour / P-3010: LATTE

Colour / P-893: RAL 7006 Mocha

Colour / P-3012 : *RAL 3012 Beige red - Terracota

Colour / P-251: RAL 3017 Rose

Colour / P-8015: RAL 8015 BORDEAUX RAL 8015
Metal finishes / Polisheds-Chromeds

Colour / P-225 / P-200 Polished-chromed
