Tknika Office Bench
H750
A versatile and scalable table system, with endless possibilities for use in myriad sectors, such as contract, office and hospitality.
High pressure injected aluminum knots, direct leg knot option, knot for 90º joint and knot for 180º joint.
Legs in extruded aluminum 67.5 x 50mm or solid beech wood 67.50x50mm natural varnished.
Frame made of 40x30mm steel join bars and steel crossbars 80x40mm.
Top 20mm melamine, Fenix 20mm, 13mm compact resin or 20mm wood veneer.
Metallic finishes epoxy/polyester paint with a thickness of 50-90 microns depending on the colour, ISO 2409 Gt 0 adhesion and ASTM 2794 impact 2.5 joules reverse & direct or chrome finish, composition: 98.4% NI, 1.6% CR, 24.4 micron thickness and UNE EN ISO 2409-96 adhesion, Classification 0.
Environmental certificates
UNE-EN 15372 Mobiliario. Resistencia, durabilidad y seguridad. Furniture - Strength, durability and safety.
ISO 14006 Ecodesign.
EPD (Declaración medioambiental de producto, Environmental product declaration. Reciclable hasta un 99%.
Recyclable up to Reciclable hasta un 100 %.

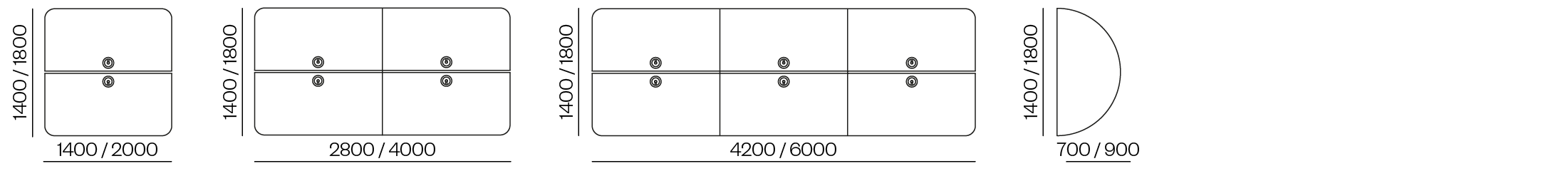

Measures
H750
Accesories
Top Access Round - AC072
Ø140mm support / Ø102mm cut out / Ø80mm passage.
Round metal top access with removable cover.
Customisable colour.
Top Access Rectangular - AC097
300x135mm support / 275x110mm cut out / 253x88mm passage.
Rectangular metal top access with removable cover and double outlet.
Customisable colour.
Top Access - AC052
Ø96mm support / Ø80mm cut out.
White, black or grey colour.
USB Charger - AC083
Ø70mm support / Ø60mm cut out.
1 schuko + 1 USB charge A and C.
Black colour.
Multicharger Pro - AC085
Ø80mm support / Ø71mm cut out.
Wireless charging + USB A and C.
Black colour.
Top Access Small Rectangular - AC060
240x100mm support / 233x93mm cut out.
Top access small rectangular in metal.
White or black colour.
Top Access Big Rectangular - AC061
320x100mm support / 313x93mm cut out.
Top access big rectangular in metal.
White or black colour.
Top Access Double - AC062
320x135mm support / 313x128mm cut out.
Top access double opening in metal.
White or black colour.
Top Access Square - AC063
100x100mm support / 93x93mm cut out.
Top access square in metal.
White or black colour.
Electrification Box - AC070
144x78,6mm support / 135x67mm cut out.
Surface electrical unit with 2 schukos.
White or black colour.
Electrification Box - AC071
267,75x78,6mm support / 258,8x67mm cut out.
Surface electrical unit with 1 schuko + 1 USB charge A et C + 2 RJ45 + 1 HDMI.
White or black colour.
Kit D'Électrification - AC056
319x154mm support / 294x147mm cut out.
Électrification a fleur de plateaux avec Ouverture 45º, box en métal avec top rabattable 4 modules oitils. Kit: 2 schukos + 1 HDMI + 2 RJ45 + câble conexión 3 metres.
White or black colour.
Wooden Top Access - AC098
310x100mm.
Built-in wooden top access.
(Available only for wooden tabletops).
Wire Mesh Tray - AC073 / AC076
400x150xh60mm / 700x150xh60mm.
Metal grill-type tray for electrification.
Customisable in colour.
Wire Mesh Tray - AC093 / AC094
400x200xh110mm / 700x200xh110mm.
Metal grill-type tray for electrification.
Customisable in colour.
Cable Tray - AC054
420x155xh130mm.
Metallic cable tray for electrification.
Customisable in colour.
Doble Cable Tray - AC078
600x460x154mm.
Metallic double cable tray for electrification.
Customisable in colour.
Fordable Tray - AC099 / AC100
600x316xh126mm / 900x316xh126mm.
Fordable metal tray for storage of electrification.
Customisable colour.
Flexible Cable Riser - A34/M
Flexible cable riser.
White or black colour.
Pencil Holder - AC074
338x158xH73mm.
Painted metal pencil holder on worktop. Includes interior protective black rubber.
Customisable colour.
Suspended Buck with Drawer - AC075
395x353xh355mm.
Melamine drawer and pencil holder in metal powder coated. Includes interior protective black rubber.
Single colour, six colours available: white, graphite, olive green, rose, grey clay or red clay.
Upholstered Screens
Fix or self-supporting.
Individual 665x30xh410mm. Double 1325x30xh140mm.
Upholstery: See fabric specifications according to the manufacturer.
Table Supplement
Top in 20mm melamine, 13mm compact resin, 20mm wood veneer or Fenix 20mm.
Finishes
Table tops / Compact-HPL
Color / M-626 Blanco / White
Color / M-629 Negro / Black
Table tops / Melamine
Color / M-817 Blanco Polar / White Polar
Color / M-825 Sahara / Sahara
Color / M-821 Rosa Talco / Rose
Color / M-824 Rojo Arcilla / Red Clay
Color / M-814 Roble Aurora / Oak Aurora
Color / M-819 Nogal Slow / Walnut Slow
Color / M-823 Gris Arcilla / Grey Clay
Color / M-822 Verde Oliva / Olive Green
Color / M-826 Roble Mesura / Oak Mesura
Color / M-827 Nogal Siroko / Siroko Walnut
Color / M-820 Roble Sinatra / Oak Sinatra
Color / M-816 Roble Azabache / Oak Azabache
Color / M-818 Grafito / Graphite Petroleo
Table tops / Wood
Color / M-690 Roble Blanco / White Oak
Color / M-687 Roble Natural / Natural Oak
Color / M-688 Nogal Natural / Natural Walnut
Color / M-686 Roble Negro / Black Oak
Metal finishes / Oxidized powder coats
Color / P-260: Anodic Bronze
Color / P-262: Oxyde Brown Textured
Color / P-261: Copper
Metal finishes / Powder coats (RAL: approximate references)
Color / P-257: *RAL 9016 White Textured
Color / P-1002: Ivory
Color / P-249: *RAL 1019 Grey Beige
Color / P-893: *RAL 7006 Mocha
Color / P-3010: Latte
Color / P-3012: *RAL 3012 Beige Red - Terracota
Color / P-251: *RAL 3017 Rose
Color / P-8015: *RAL 8015 Bordeaux
Color / P-254: *RAL 7042 Traffic Grey
Color / P-3040: Mint
Color / P-250: *RAL 1015 Mustard
Color / P-1017: *RAL 1017 Apricot - Ochre
Color / P-7003: *RAL 7003 Moss Grey
Color / P-7024: *RAL 7024 Graphite Grey
Color / P-208: *RAL 9017 Black Textured
Color / P-246: *RAL 9017 Black
Color / P-5001: *RAL 5001 Navy Blue
